TV Stand Plans
A low media console built from one or two sheets. Choose how many bays you need, whether the outer bays get doors, and how many shelves each bay holds. The cut list follows every change.
- Default size
- 1600 × 450 × 400 mm
- Parts
- 12 pieces · 6 sizes
- Sheets (2440 × 1220 mm (4 × 8 ft))
- 2 carcass + 1 door + 1 back
- Difficulty
- Intermediate
- Build time
- About 6 hours
- Edge band
- 10.3 m
Cut list (default size)
| Part | Qty | Length | Width | Thick. | Board | Edges |
|---|---|---|---|---|---|---|
| Side | 2 | 450 | 400 | 18 | Carcass board 18 mm | |
| Top / bottom | 2 | 1564 | 400 | 18 | Carcass board 18 mm | |
| Divider | 2 | 414 | 400 | 18 | Carcass board 18 mm |
Sizes in millimetres; length runs along the grain. Edges: bold lines are banded.
3 more parts, the sheet layout and the cut order are in the full plan.Resize it to any size, print labels and save it in a project.Sign in free to open it

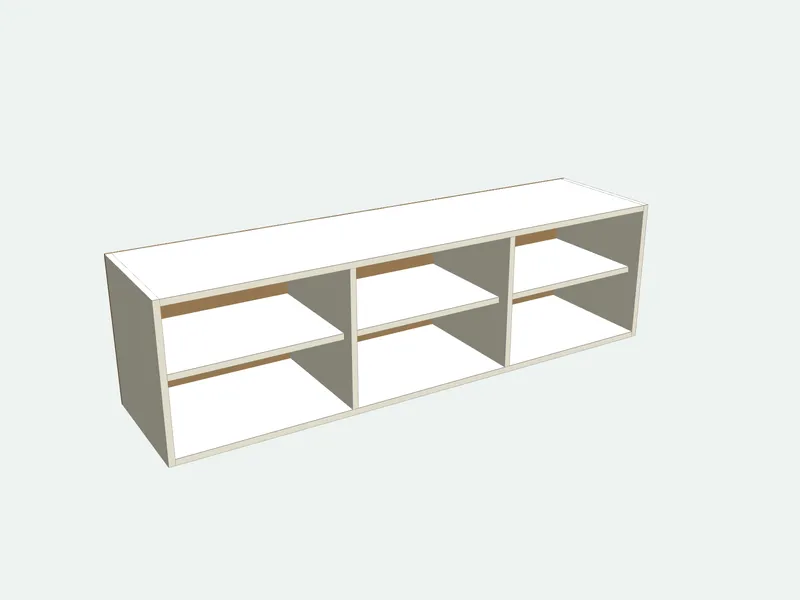

How it is built
- Sides run full height; top, bottom and dividers fit between them.
- Each door covers its bay, the side panel and half of the divider, with a 1.5 mm gap.
- Shelves are 2 mm shorter than the bay and 40 mm shallower, so cables pass behind them.
Common mistakes
- Making the stand narrower than the TV base. Leave at least 100 mm on each side so it doesn't look top-heavy.
- Forgetting cable holes in the back. Drill a 60 mm hole behind each bay before assembly.
Tools you need
- Track saw or table saw
- Drill/driver
- 35 mm hinge bit
- Edge banding iron
Frequently asked questions
How tall should a TV stand be?
The middle of the screen should be near seated eye level, about 1000–1070 mm from the floor. That makes a stand 450–650 mm tall: lower for big screens, higher for small ones.
Can I leave out the doors?
Yes: set “Doors on outer bays” to 0 and every bay stays open.
How wide should the stand be?
Wider than the TV: at least 100 mm more on each side. A 65 in TV is about 1440 mm wide, so a 1600 mm stand suits it.
