Trash Can Cabinet Plans

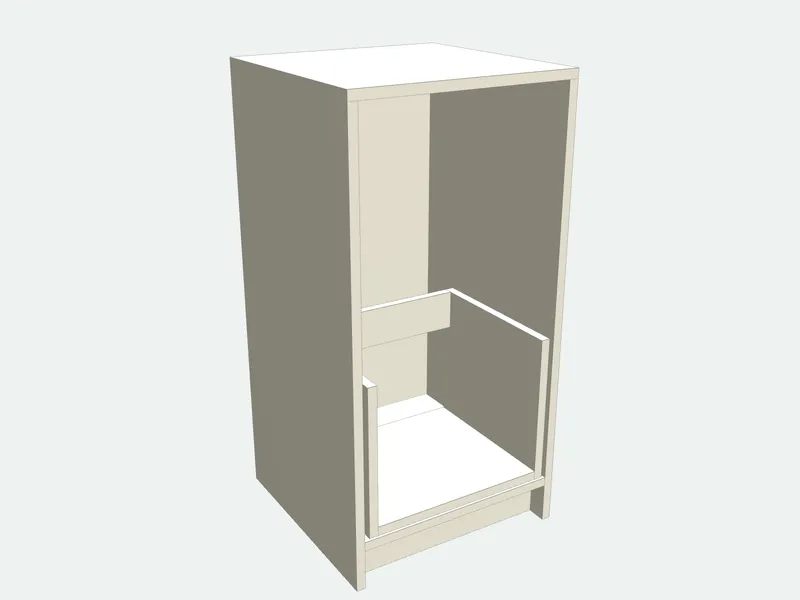

A trash can cabinet that hides the kitchen bin: the front is hinged at the bottom and carries a holder for the bin, so it tilts out when you pull the handle and closes flush. The defaults fit a 13-gallon kitchen bin in a cabinet 450 mm (17 3/4 in) wide at counter height; make it 750 mm or more wide for a trash bin and a recycling bin side by side.
- Default size
- 450 × 900 × 450 mm
- Parts
- 11 pieces · 9 sizes
- Sheets (2440 × 1220 mm (4 × 8 ft))
- 1 carcass + 1 door
- Difficulty
- Easy
- Build time
- About 5 hours
- Edge band
- 7.4 m
Cut list (default size)
| Part | Qty | Length | Width | Thick. | Board | Edges |
|---|---|---|---|---|---|---|
| Top | 1 | 450 | 450 | 18 | Carcass board 18 mm | |
| Side | 2 | 882 | 450 | 18 | Carcass board 18 mm | |
| Bottom | 1 | 432 | 414 | 18 | Carcass board 18 mm |
Sizes in millimetres; length runs along the grain. Edges: bold lines are banded.
6 more parts, the sheet layout and the cut order are in the full plan.Resize it to any size, print labels and save it in a project.Sign in free to open it
How it is built
- Hinge the front at the bottom with two butt hinges or a tilt-out hinge set, and fit a chain or a strap that stops it at about 30°.
- Screw the bin holder to the back of the front through the holder sides, so it tilts out with the front.
- Fit a magnetic catch at the top and a handle near the top edge of the front.
Common mistakes
- Skipping the stop: the front falls open and the bin tips out.
- Choosing a bin taller than the opening: it catches on the top as the front tilts. Keep 50 mm clear.
Tools you need
- Circular saw or table saw
- Drill/driver
- Clamps
Frequently asked questions
What size trash can fits?
The holder takes a bin up to the inside width shown in the cut list, about 360 mm (14 in) at the default width, and up to about 650 mm (25 in) tall. A standard 13-gallon kitchen bin fits; measure yours.
How far does the front tilt?
About 30°, held by a chain or a strap: enough to drop trash in and lift the bag out. Fit the stop before the first use.
Can it hold two bins?
Yes: at 750 mm (30 in) wide or more, two bins stand side by side in the holder, one for trash and one for recycling.
Does it need a lid?
No: the closed cabinet keeps smells in and pets out. Drill a few vent holes in the back if the bin gets damp.
